Gobo Plate‚Ñ¢ Baby Pin

30026

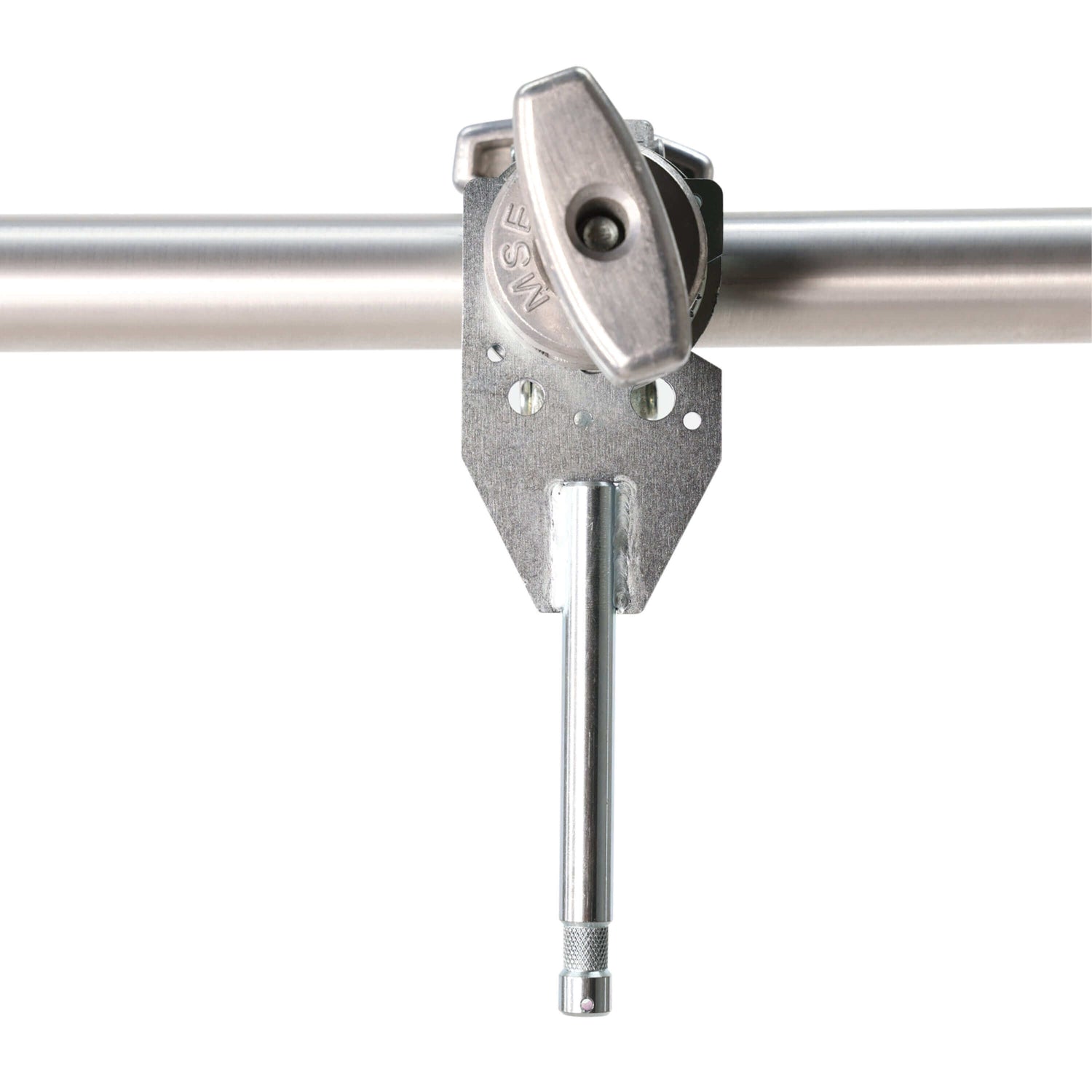

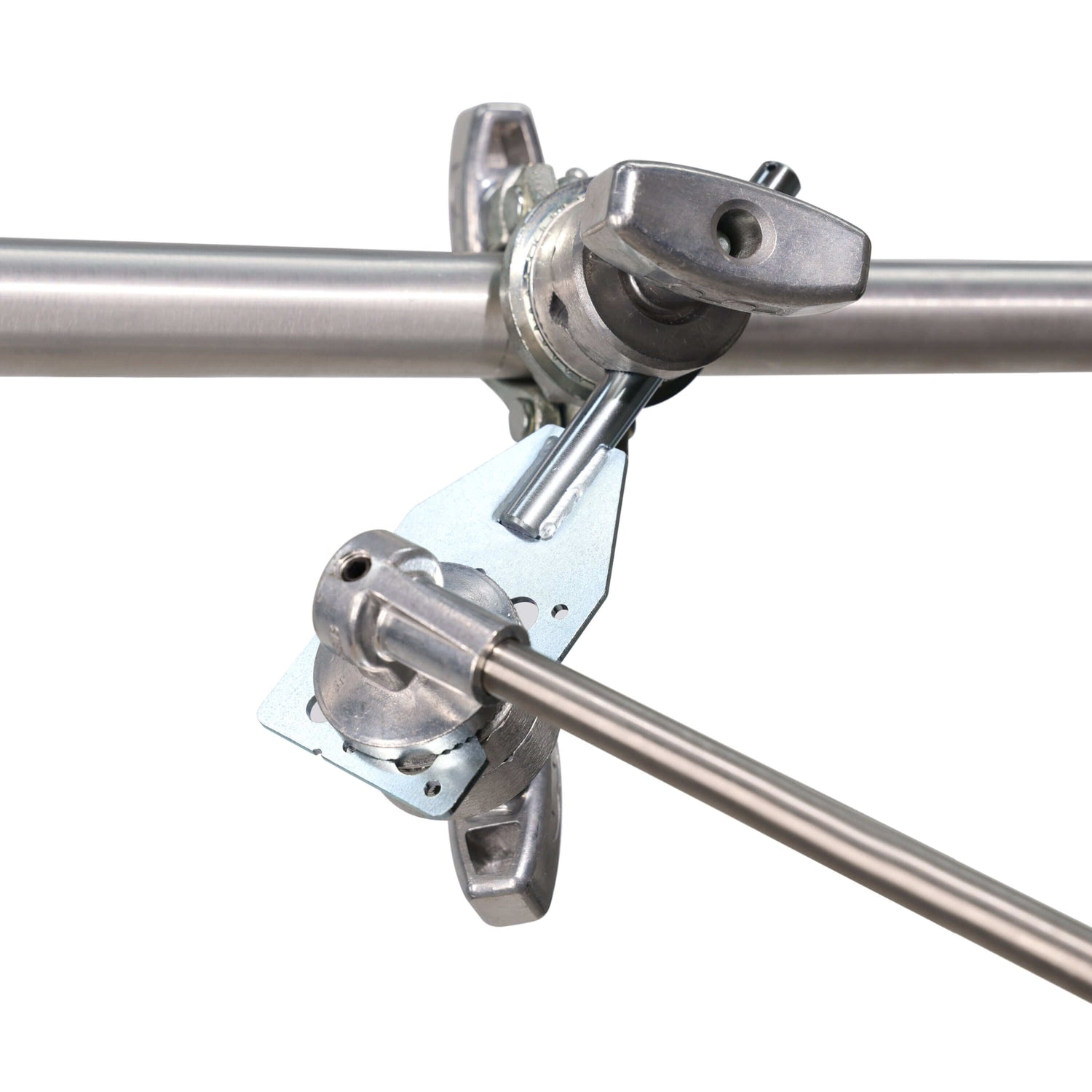

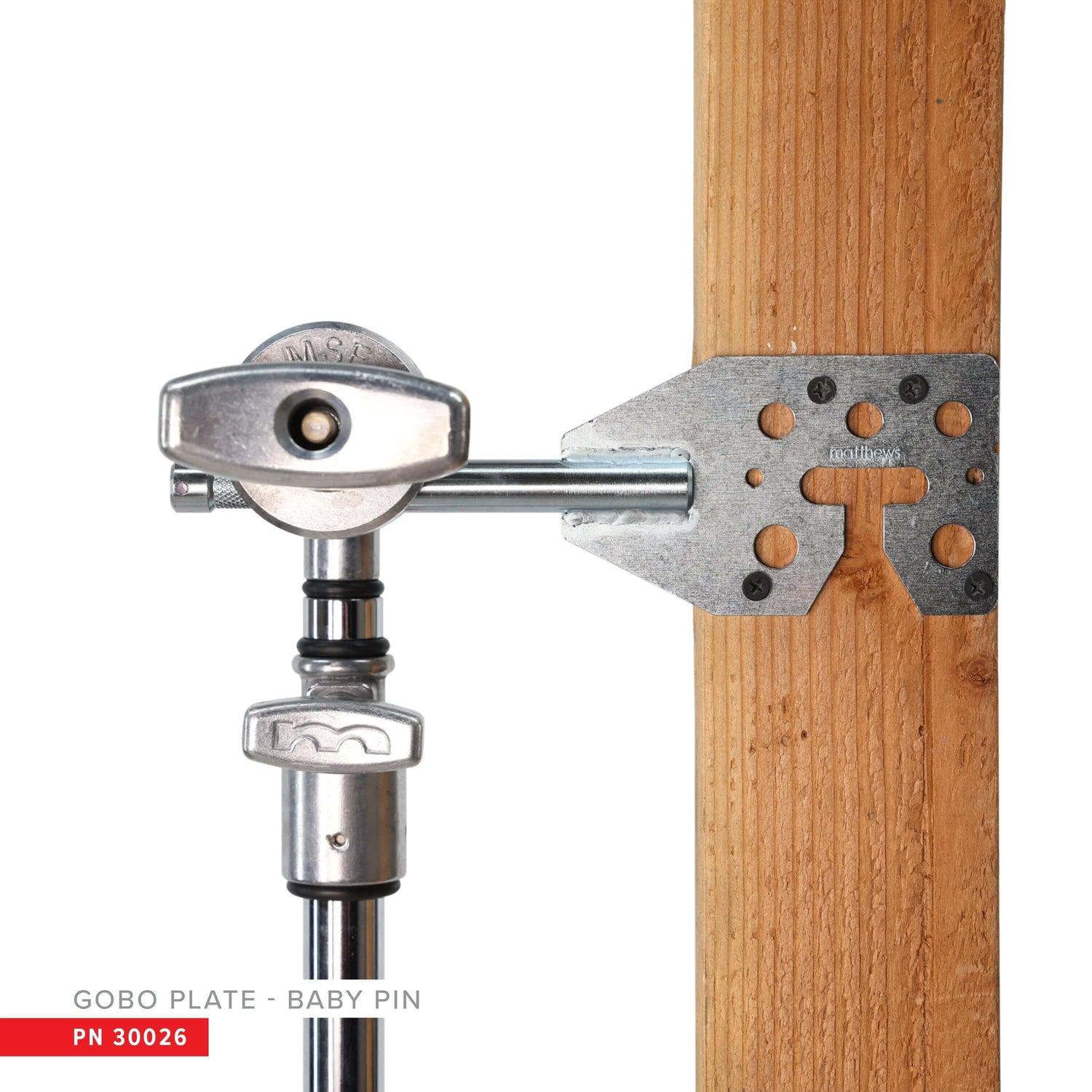

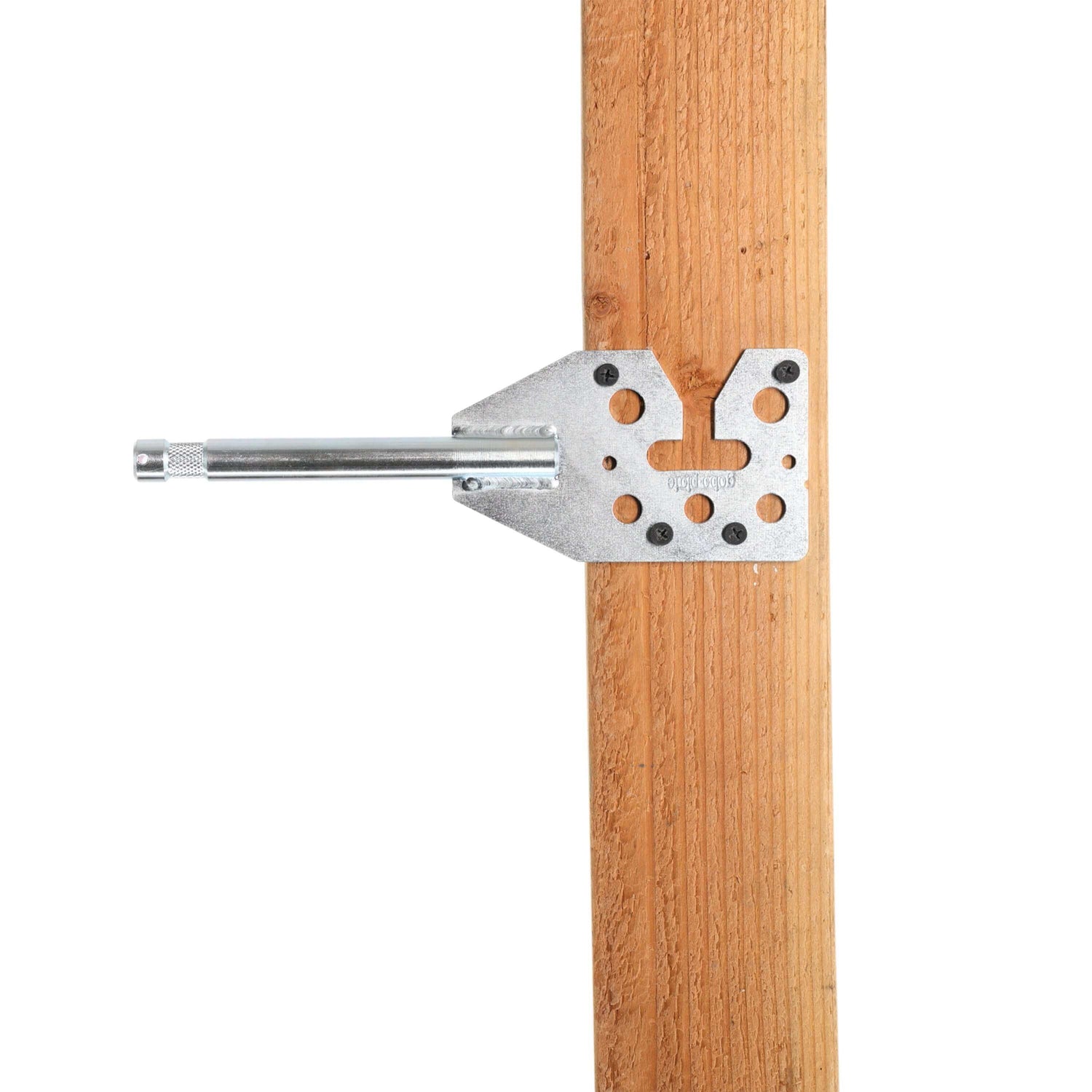

Matthews Studio Equipment, Inc. adds to the Gobo Plate™ line with another clever product featuring the industry standard 5/8” pin debuted by Matthews decades ago. Gobo Plate™ Baby Pin is designed to mount onto standard 2.5” Grip heads; bolt onto Cheeseplates; and screw or nail onto set walls, Apple Boxes, lumber and beams; with its well-thought-out Gobo Plate bracket. Add an industry standard 5/8” Baby Pin wherever it’s needed, whether supporting a lighting unit or a grip modifier, or simply trying to join gear in unconventional angles.

CHARACTERISTICS

  • T-slot with V centering quickly secures grip head mounting
  • Two each ¬Ω‚Äù diameter, three each 3/8‚Äù diameter, and six each ¬º‚Äù diameter spaced circular cutouts allow mounting to heads, lumber, beams, set walls, and more.
  • Safety hole on baby pin allows mounted units to be secured.

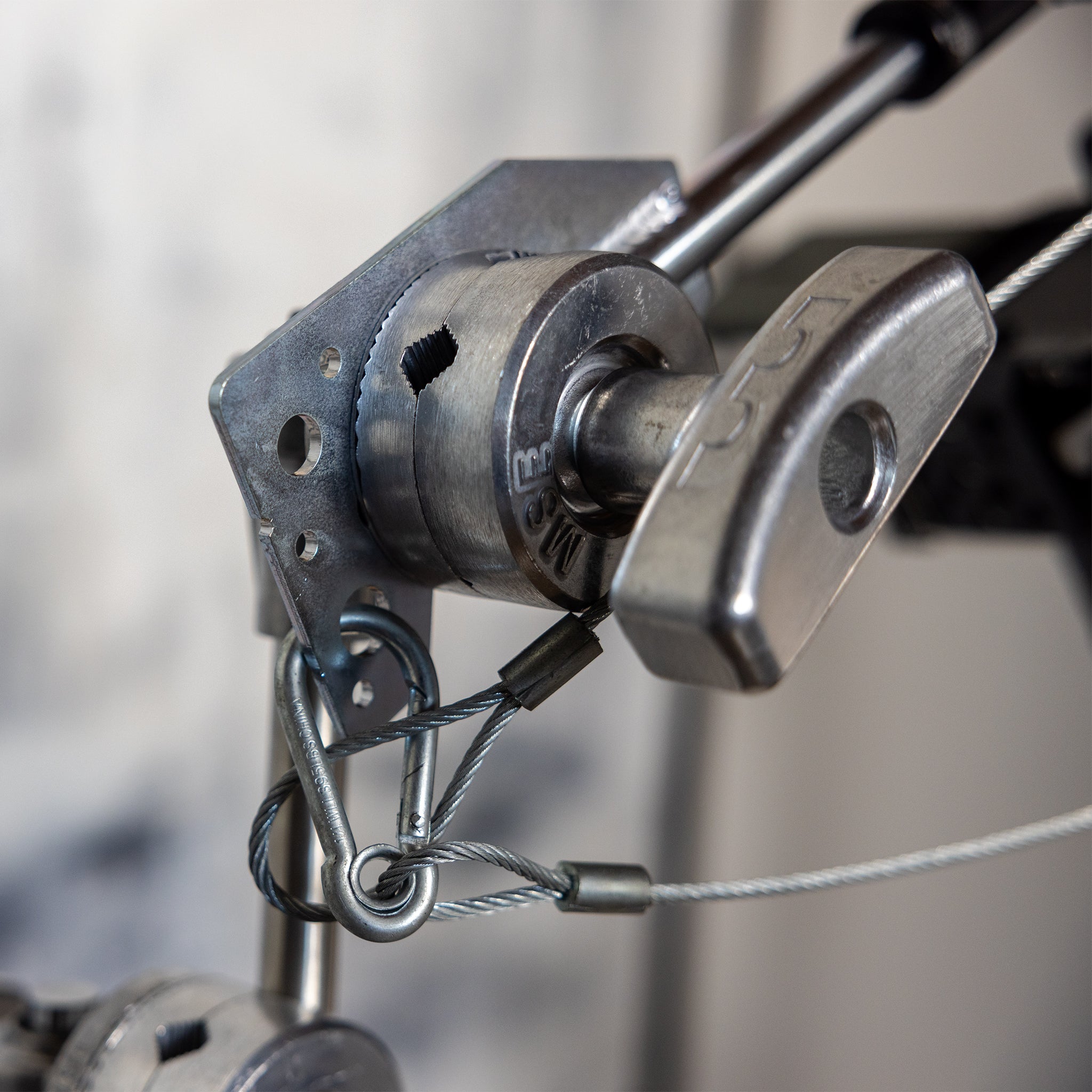

  • Carabiner hole placement prevents plate from coming out of grip head as well as allowing plate to be safely tethered when rigged.
  • Pin finds center when used with a grip head as a drop down.
  • Knurled baby pin ensures whatever is being mounted stays put.

SPECIFICATIONS

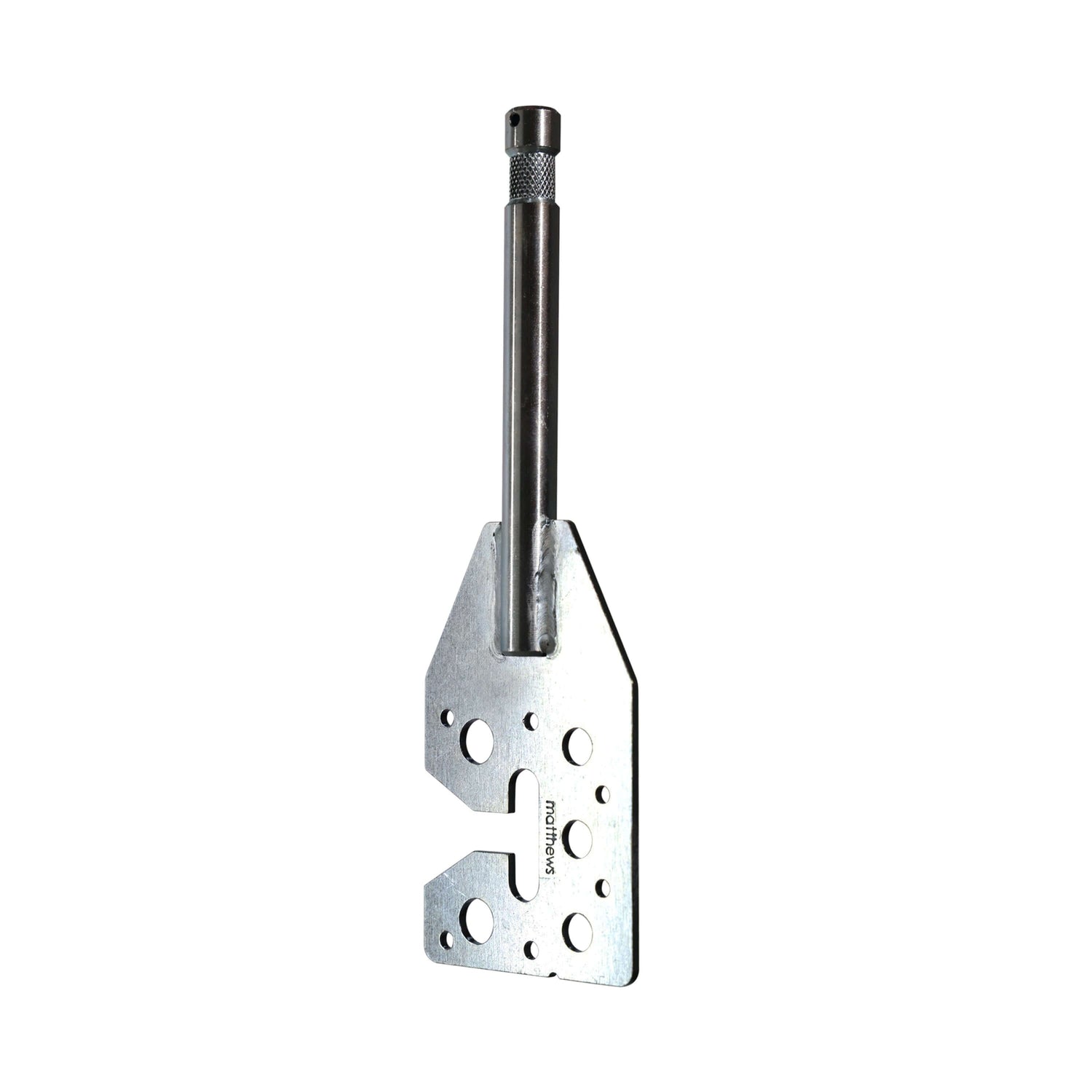

  • Machined out of a single sheet of 1/8‚Äù thick steel with a welded baby pin
  • Clear zinc coating
  • Weight: 13.1 oz.
  • Dimensions: 3‚Äù x 9.5‚Äù
