MAX Menace Arm

Matthews Studio Equipment | SKU: B377700

MAX can be positioned flush against a wall, into or around a corner.
MAX works 6' below the horizontal thus eliminating the need for scaffolding.
MAX can be positioned parallel up to a 10' (305cm) ceiling.
16' (487cm) extension without adapter. 17.5' (533cm) extension with adapter.
Self-leveling head with Baby Pin and Junior Receiver.

$8,200.00 USD

Loading locations...

MAX Menace Arm is available and will ship soon

Become a Dealer or Wholesaler

Elevate your business with Matthews Studio Equipment. Gain access to premium, industry-leading products crafted for professionals who demand the very best. Learn more.

SPECIFICATIONS

Horizonal Reach: 16ft (487cm) without adapter, 17.5ft (533cm) with adapter
Vertical Reach: Over 20ft (609cm)
Below-Grade Reach: 6ft (1.83m) below roofline or balcony
Horizontal plane adjustment: 7 to 10 ft (213-305cm)
Capacity when not deployed: 175 lbs (80kg)
Capacity when fully deployed: 75 lbs (34kg)
Maximum Counterbalance: 500 lbs on the base
Weight: 215 lbs (98kg)
Shipping Requires a crate for shipment

CHARACTERISTICS

Head / Mount: Self-leveling, with B5/8" Baby Pin and 1-1/8" Junior Receiver
Positioning: Can sit flush against a wall or tucked into a corner
Ceiling Clearance: Can position parallel up to a 10 ft (305cm) ceiling at full extension
Counterbalance: Sandbags Shot bags, Standard weight plates - up to 500 lbs max
Mobility: Recommend collapsing the extension prior to moving
Casters: Straight-tracking, multi-direction locking, non-marking
Use Cases: Lights, flags, frames, cameras, you name it
Recognition / Awards: Academy Scientific and Technical Achievement Award, presented February 2013

Before Use, review the safety manual, Proper Examination of MAX Menace Arm, prior to operation.

What is the MAX Menace Arm?

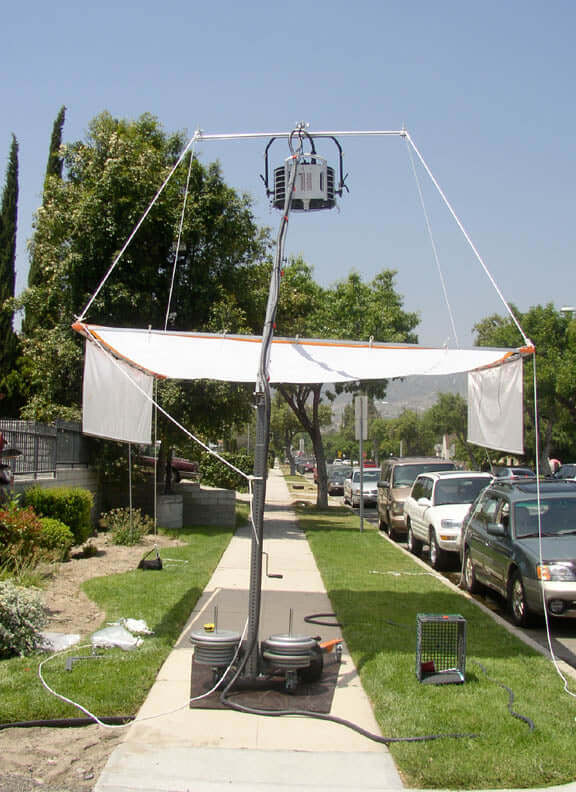

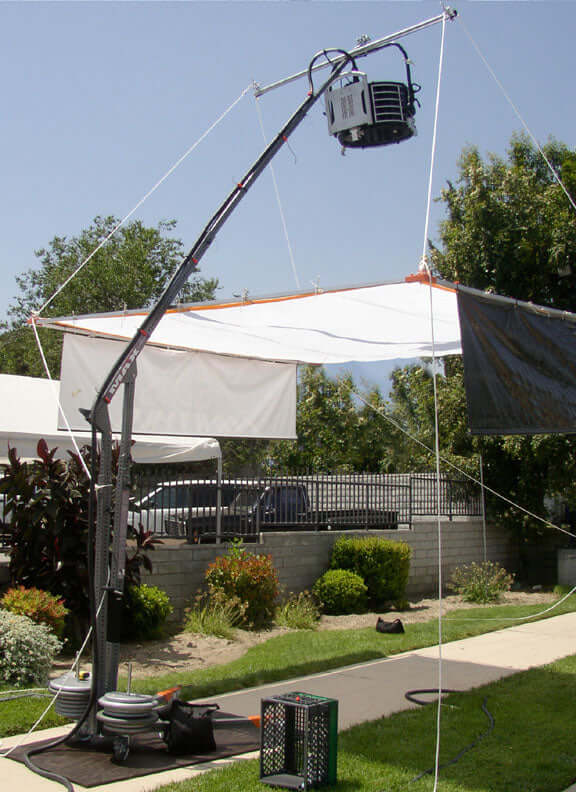

MAX Menace Arm lets grips and gaffers hang a light, flag, or camera exactly where a stand can't go - flush against a wall, into a corner, over a set wall, off a rooftop, or below a balcony railing - without touching the location. It was built to solve one specific, recurring problem: how do you rig a light in a spot where nothing can be attached to walls or ceiling, there's no floor space for a standard counterbalance boom, and the rig must be kept out of frame. MAX answers these challenges with a self-leveling head, a counterbalanced-from-the-base arm that extends up to 17.5 feet parallel to a 10-foot ceiling, goes 6 feet below grade, and tops out over 20 feet in the air.

A Grip's Solution, Not a Factory Concept

MAX started out on set - Key Grip Richard Mall built the first version out of necessity while rigging a backlight where nothing could touch the walls. Matthews brought this solution to market in the mid-aughts. Word spread from crew to crew, and MAX went on to work on hundreds of productions - Avatar, Inception, The Dark Knight, Iron Man 1, 2, and 3, There Will Be Blood, The Curious Case of Benjamin Button, - and many, many more following its Sci-Tech Academy Award Win.

Academy Recognition

In recognition of MAX's impact on the industry, the Academy of Motion Picture Arts and Sciences honored Richard Mall with a Scientific and Technical Award for the design and development of the MAX Menace Arm, presented at the Academy's Sci-Tech Awards ceremony in February 2013. The Academy cited it as a "safe and adjustable device that allows rapid, precise positioning of lighting fixtures, cameras or accessories" - recognition rarely given to grip equipment.

What It's Used For
