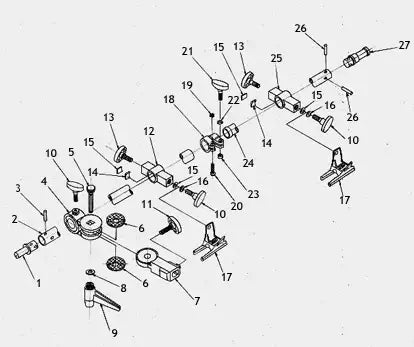

Exploded View - 319200 MICRO MINI BOOM
| Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description |
| 27 | 1 | 319200-27 | Pin | 13 | 2 | 319200-13 | T-Handle |
| 26 | 2 | 319200-26 | Lock Pin | 12 | 1 | 319200-12 | Side Lock Fixture |
| 25 | 1 | 319200-25 | Side Lock Fixture | 11 | 1 | 319200-11 | T-Handle |
| 24 | 1 | 319200-24 | Tube | 10 | 3 | 319200-10 | T-Handle |
| 23 | 1 | 319200-23 | Lock Nut | 9 | 1 | 319200-9 | Plastic Handle |
| 22 | 1 | 319200-22 | Washer | 8 | 1 | 319200-8 | Washer |
| 21 | 1 | 319200-21 | Lock Nut | 7 | 1 | 319200-7 | Lock |
| 20 | 1 | 319200-20 | Screw | 6 | 2 | 319200-6 | Spacer, Alum |
| 19 | 1 | 319200-19 | Lock Nut | 5 | 1 | 319200-5 | Bolt |
| 18 | 1 | 319200-18 | Bonnet | 4 | 1 | 319200-4 | Lock |
| 17 | 2 | 319200-17 | Jaw | 3 | 1 | 319200-3 | Lock Pin |
| 16 | 4 | 319200-16 | Washer | 2 | 1 | 319200-2 | Tube |
| 15 | 2 | 319200-15 | Spacer | 1 | 1 | 319200-1 | Pin |
