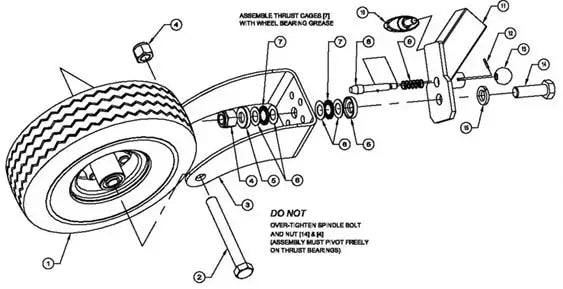

Exploded View - 377580 MOMBO CASTER WHEEL YOKE ASSEMBLY
| Detail # | Quantity | Part # | Description |
| 15 | 1 | 270069 | Lockwasher 5/8″ |
| 14 | 1 | 25-0399 | Cap Screw Hex 5/18-11 |
| 13 | 1 | 22011/100 | Knob 1″ Dia |
| 12 | 1 | 28-0030 | Rollpin 3/32″ Dia |
| 11 | 1 | 377580-3 | Caster Foot Bracket |
| 10 | 1 | B2109 | T-Handle #B |
| 9 | 1 | 19003/100 | Compression Spring |
| 8 | 1 | 1041 | Index Plunger |
| 7 | 2 | 6289/100 | Thrust Bearing Cage |
| 6 | 4 | 1121/100 | Thrust Bearing Race |
| 5 | 2 | 489402-2 | Thrust Hsg |
| 4 | 2 | 1024/100 | Locknut 5/8-11 |
| 3 | 1 | 489402-1 | Wheel Yoke |
| 2 | 1 | 25-0398 | Cap Screw 5/18-11 |
| 1 | 1 | 20-0012 | Wheel 10″ |
