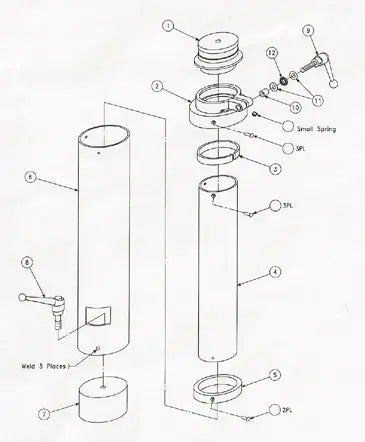

Exploded View - 377702 TELESCOPING BAZOOKA
| Detail # | Quantity | Part # | Description |
| 12 | 1 | 10-0045 | Bearing Cage |
| 11 | 2 | 10-0046 | Bearing Race |
| 10 | 1 | 17-0003 | H Coil |
| 9 | 1 | 54020 | Handle Ratchet |
| 8 | 1 | 54019 | Handle Ratchet |
| 7 | 1 | 2497-3 | Elemack Female |
| 6 | 1 | 377702-1 | Base Tube |
| 5 | 1 | 11080-01 | NYL Ring |
| 4 | 1 | 377702-2 | Top Riser |
| 3 | 1 | 11070-01 | NYL Ring |
| 2 | 1 | 377702-3 | Collar Bazooka |
| 1 | 1 | 18089-06 | Elemack Male |
