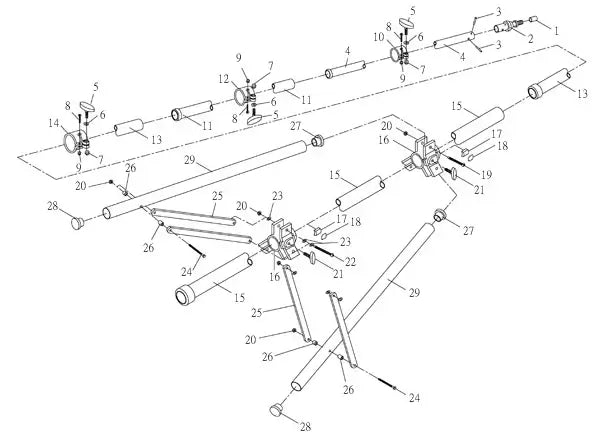

Exploded View - 387402 REVENGER STAND
| Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description |
| 29 | 3 | 387402-29 | Alum Tube | 14 | 1 | 387402-14 | Large Bonnet Casting |
| 28 | 3 | 387402-28 | Plastic Leg Foot | 13 | 1 | 387402-13 | Alum Tube |
| 27 | 3 | 387402-27 | Plastic Cap | 12 | 1 | 387402-12 | Middle Bonnet Casting |
| 26 | 6 | 387402-26 | Plastic Spacer | 11 | 1 | 387402-11 | Alum Tube |
| 25 | 6 | 387402-25 | Holder | 10 | 1 | 387402-10 | Small Bonnet Casting |
| 24 | 6 | 387402-24 | Bolt | 9 | 3 | 387402-9 | Nut |
| 23 | 9 | 387402-23 | Washer | 8 | 3 | 387402-8 | Bolt |
| 22 | 3 | 387402-22 | Bolt | 7 | 3 | 387402-7 | Nut |
| 21 | 2 | 387402-21 | T-Handle | 6 | 3 | 387402-6 | Washer |
| 20 | 9 | 387402-20 | Nylon Nut | 5 | 3 | 387402-5 | T-Handle |
| 19 | 3 | 387402-19 | Bolt | 4 | 1 | 387402-4 | Alum Tube |
| 18 | 2 | 387402-18 | Sheet Iron | 3 | 2 | 387402-3 | Copper Pin |
| 17 | 2 | 387402-17 | Washer | 2 | 1 | 387402-2 | Connector |
| 16 | 2 | 387402-16 | Spider Casting | 1 | 1 | 387402-1 | White Plastic Cap |
| 15 | 1 | 387402-15 | Tube |
