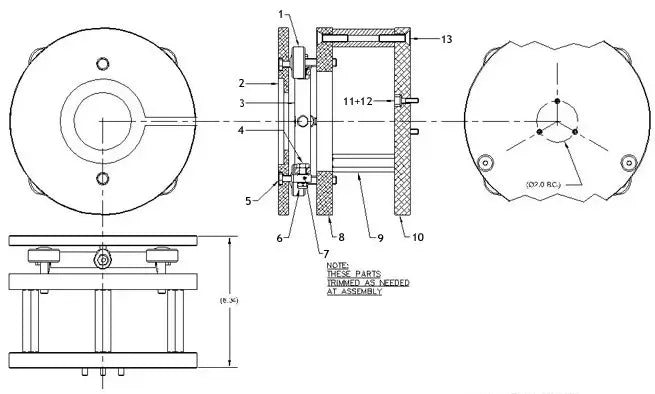

Exploded View - 415064 4-WAY LEVEL HEAD STADIUM TURRET FLAT MOUNT
| Detail # | Quantity | Part # | Description |
| 13 | 6 | 25-0301 | CS, FLT |
| 12 | 3 | 1029/100 | Lwsh |
| 11 | 3 | 1146/100 | CS, Soc |
| 10 | 1 | 5029-5 | Bottom Plate |
| 9 | 3 | 11060-01 | Riser |
| 8 | 1 | 415063-2 | Middle Plate Assy |
| 7 | 4 | 1022/100 | Rod End |
| 6 | 4 | 1387/100 | Lock Nut |
| 5 | 4 | 1036/100 | Nut, Hex |
| 4 | 4 | 1034/100 | Cap Screw |
| 3 | 1 | 415064-4 | Gimble Ring |
| 2 | 1 | 5058 | Mitchell Plate |
| 1 | 4 | 415064-3 | Adjusting Bolt Wmt |
