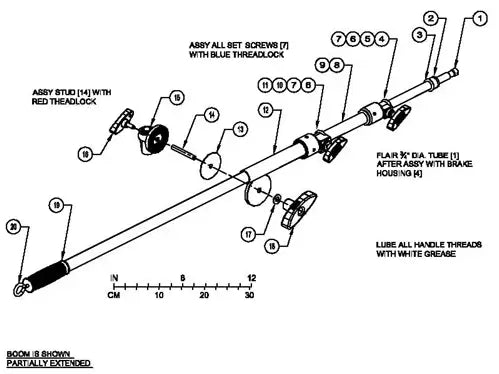

Exploded View - 427802 MINI MATTHBOOM 1XR
| Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description |
| 20 | 1 | 1140/100 | Bolt 5/16-18 | 10 | 1 | 62101-01 | Brake Pad Med |
| 19 | 1 | 3036/100 | Grip 1″ Dia | 9 | 1 | 3001/100 | O-Ring 1″ Dia |
| 18 | 1 | 54013 | T-Handle #E | 8 | 1 | 427802-2 | Riser Tube 1″ Dia |
| 17 | 1 | 1066/100 | Flat Washer | 7 | 6 | 1004/100 | Set Screw 1/4-20 |
| 16 | 1 | 63202 | T-Handle #D | 6 | 2 | 63201 | T-Handle #D |
| 15 | 1 | 54007 | Adapter Griphead to Pin | 5 | 1 | 62100-01 | Brake Pad Small |
| 14 | 1 | 32-0008 | Stud 3/8-16 | 4 | 1 | 4001 | Brake Hsg #43 |
| 13 | 1 | 54021 | Magic Gasket | 3 | 1 | 3002/100 | O-Ring .75″ Dia |
| 12 | 1 | 427802-1 | Pivot Tube Wmt | 2 | 1 | 3003/100 | O-Ring .63″ Dia |
| 11 | 1 | 4000 | Brake Hsg #54 | 1 | 1 | 427801-4 | Top Riser Wmt |
