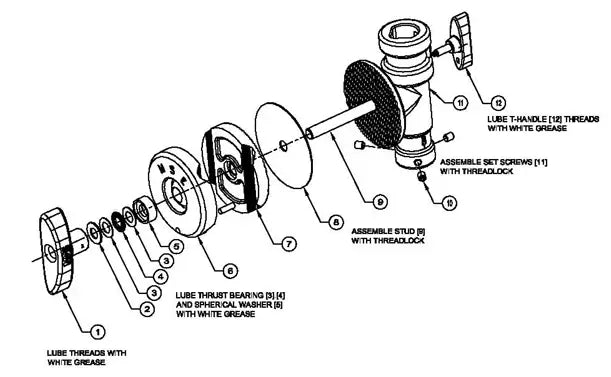

Exploded View - 54000 OVERHEAD STAND 4" GRIP HEAD SUB ASSEMBLY
| Detail # | Quantity | Part # | Description |
| 12 | 1 | 63202 | T-Handle #D |
| 11 | 1 | 4022-1 | Griphead Riser Body 4″ Dia |
| 10 | 3 | 25-0231 | Set Screw Hex 5/16-18 |
| 9 | 1 | 32-0011 | Stud SST 1/2-13 |
| 8 | 1 | 54022 | Magic Gasket 4″ Dia |
| 7 | 1 | 54002 | Griphead Rear Plate |
| 6 | 1 | 54001 | Griphead Front Plate |
| 5 | 1 | 18023-00 | Spherical Washer |
| 4 | 1 | 10-0047 | Thrust Bearing Cage |
| 3 | 2 | 10-0048 | Thrust Bearing Race |
| 2 | 1 | 1002/100 | Flat Washer |
| 1 | 1 | 54003 | T-Handle #E |
