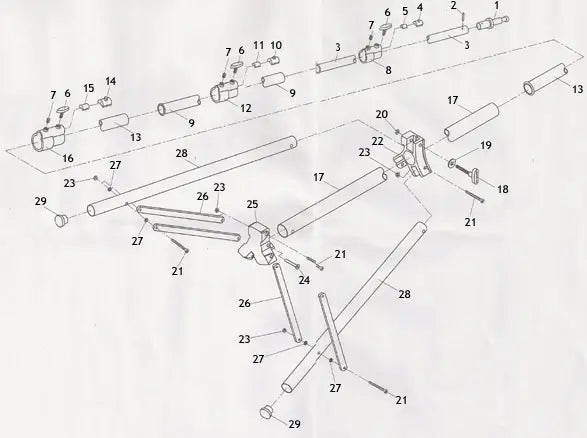

Exploded View - B387477 KIT STAND MEDIUM DUTY - BLACK
| Detail # | Quantity | Part # | Description | Detail # | Quantity | Part # | Description |
| 29 | 3 | B387477-29 | Plastic Leg Foot | 14 | 1 | B387477-14 | Large Brake Gasket |
| 28 | 3 | B387477-28 | Alum Tube | 13 | 1 | B387477-13 | Alum Tube |
| 27 | 6 | B387477-27 | Washer, Spring | 12 | 1 | B387477-12 | Middle Bonnet Casting |
| 26 | 6 | B387477-26 | Holder | 11 | 1 | B387477-11 | Middle Brake Gasket |
| 25 | 1 | B387477-25 | Spider Casting | 10 | 1 | B387477-10 | Middle Brake Gasket |
| 24 | 1 | B387477-24 | Rivet | 9 | 1 | B387477-9 | Alum Tube |
| 23 | 8 | B387477-23 | Nylon Nut | 8 | 1 | B387477-8 | Small Bonnet Casting |
| 22 | 1 | B387477-22 | Spider Casting | 7 | 3 | B387477-7 | Socket Set Screw |
| 21 | 8 | B387477-21 | Bolt | 6 | 3 | B387477-6 | T-Handle |
| 20 | 1 | B387477-20 | Nut | 5 | 1 | B387477-5 | Small Brake Gasket |
| 19 | 1 | B387477-19 | Washer | 4 | 1 | B387477-4 | Small Brake Gasket |
| 18 | 1 | B387477-18 | T-Handle | 3 | 1 | B387477-3 | Alum Tube |
| 17 | 1 | B387477-17 | Alum Tube | 2 | 1 | B387477-2 | Spring Pin |
| 16 | 1 | B387477-16 | Large Bonnet Casting | 1 | 1 | B387477-1 | Connector, Pin |
| 15 | 1 | B387477-15 | Large Brake Gasket |
