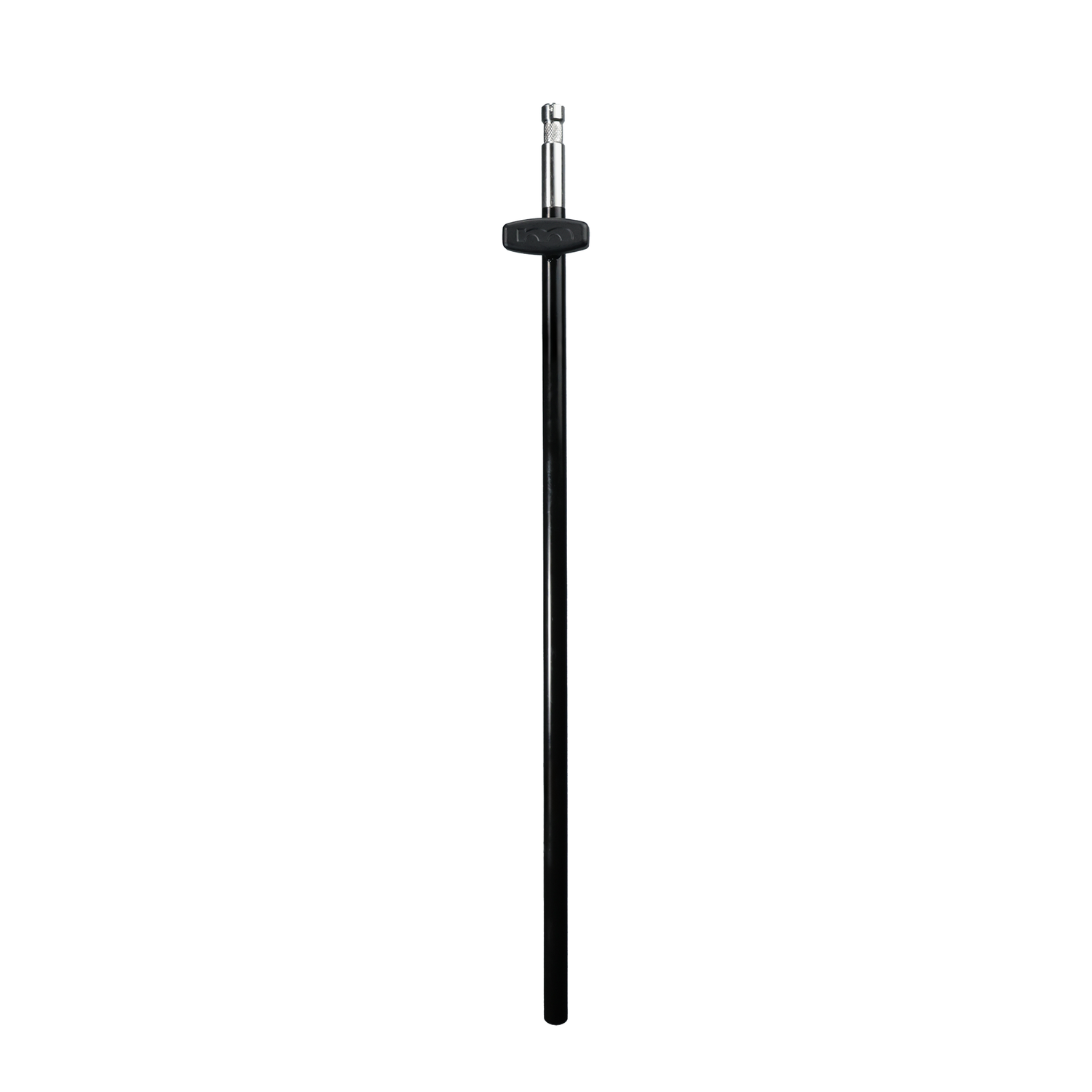

5/8" Grip Rail - Telescoping Baby Rail

msegrip | SKU: 429040

One telescoping baby pin rail replaces multiple fixed-length 5/8" rods - 24" closed to 42.5" fully extended
Adjustable rail works in tight spaces where standard grip arms can't - extend only as far as you need, no excess arm to manage
Solid stainless steel inner rod resists bowing and bending under load
Hash marks and flat spots every 2" for precise, repeatable positioning with anti-roll locking

$99.00 USD

Loading locations...

This item qualifies for FREE shipping in the continental USA

Become a Dealer or Wholesaler

Elevate your business with Matthews Studio Equipment. Gain access to premium, industry-leading products crafted for professionals who demand the very best. Learn more.

SPECIFICATIONS

Material: Stainless steel / steel
Diameter: 5/8" throughout
Closed length: 24" (61 cm)

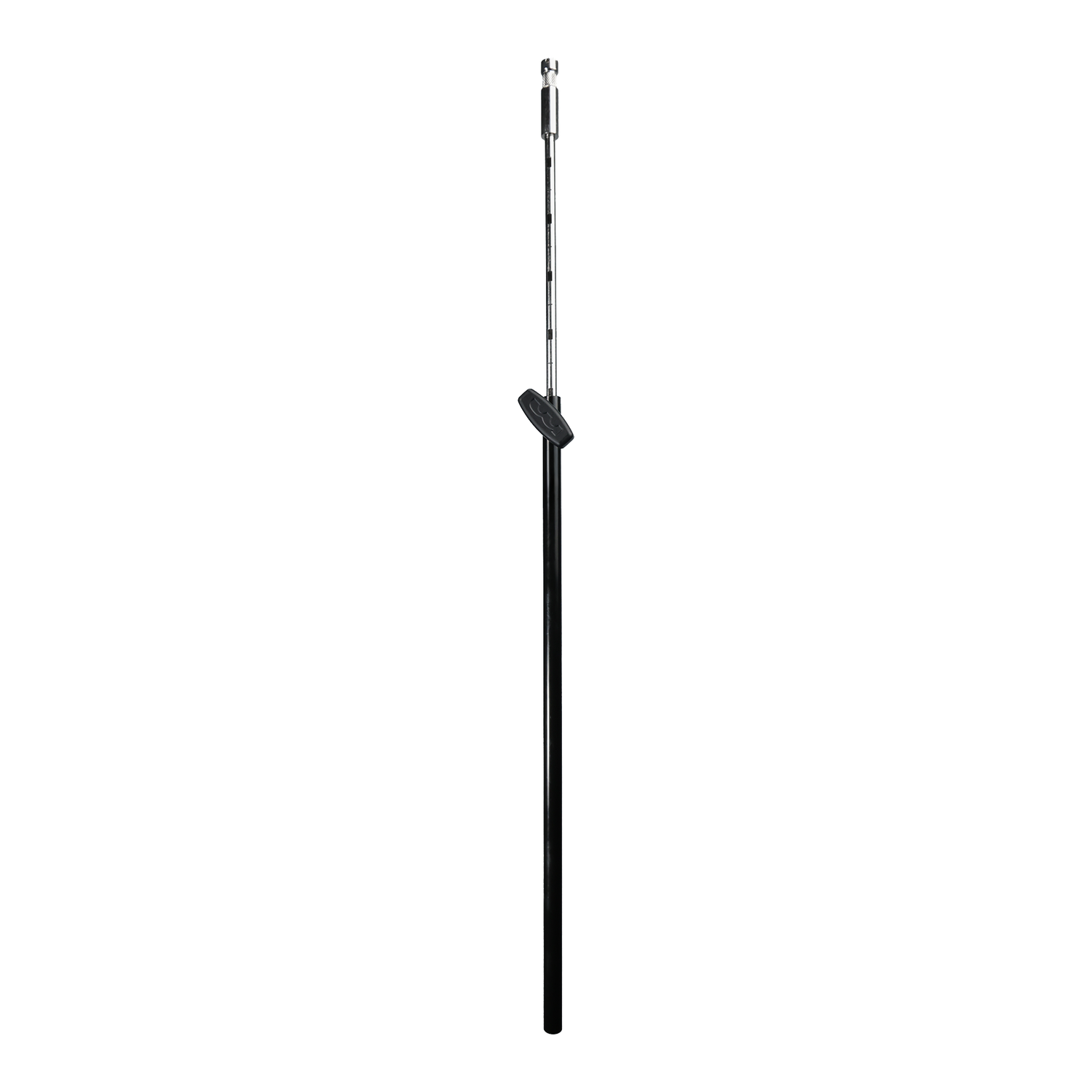

Extended length: 42.5" (108 cm)
Weight: 2 lbs (0.91 kg)
Horizontal load rating: 10 lbs (4.5 kg)
Vertical load rating: 20 lbs (10 kg)
Telescoping baby pin thread: Female 1/4"–20 industry standard; includes set screw to convert to male 1/4"–20

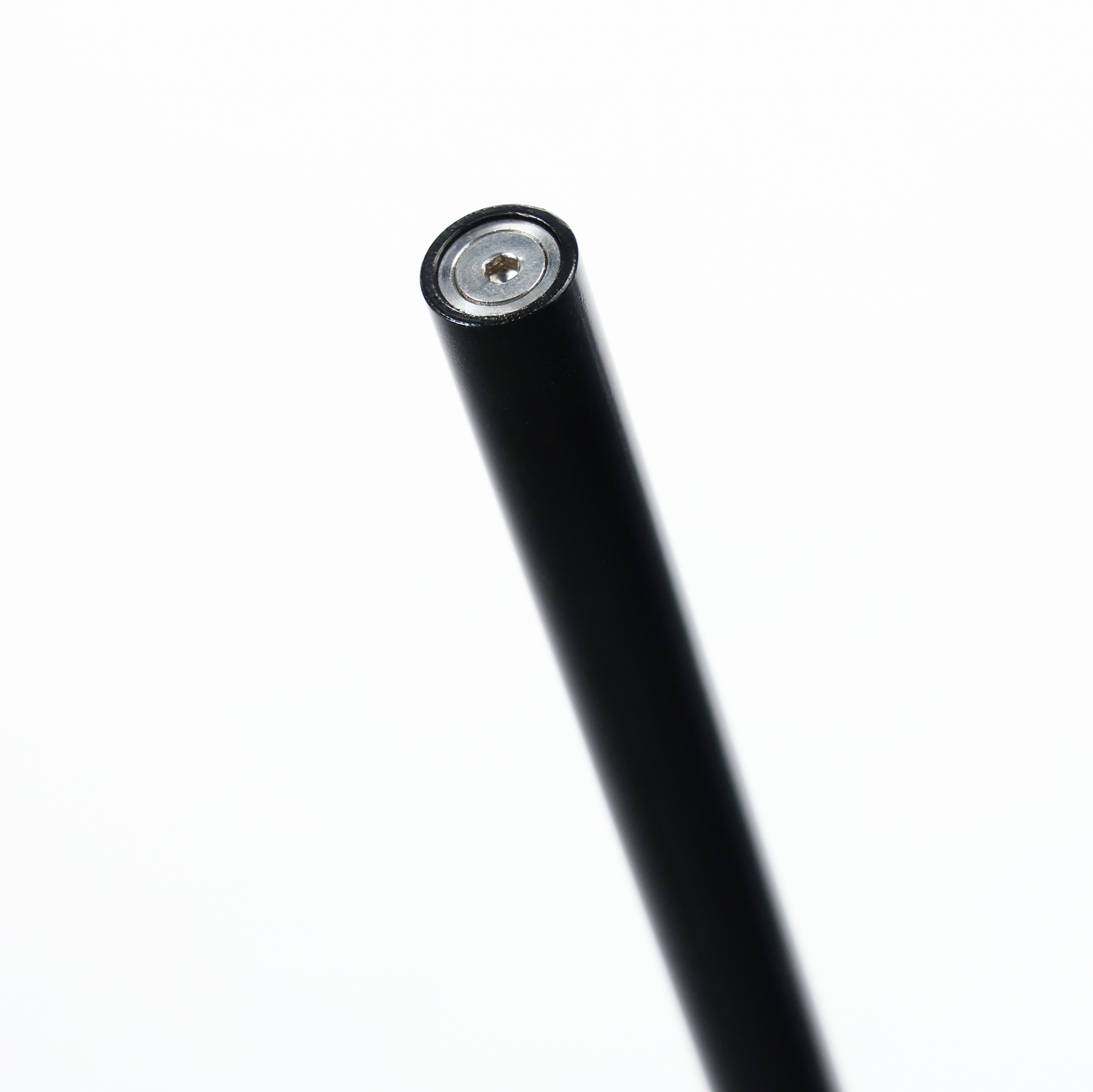

Locking: T-handle (included) or field-swappable grub set screw
Positioning: Hash marks and flat spots every 2"
Safety: Internal stop; safety hole for cotter or lynch pin

CHARACTERISTICS

Telescoping baby pin adjustable rail.
Solid stainless steel inner rod resists bowing and bending in both horizontal and vertical positions.

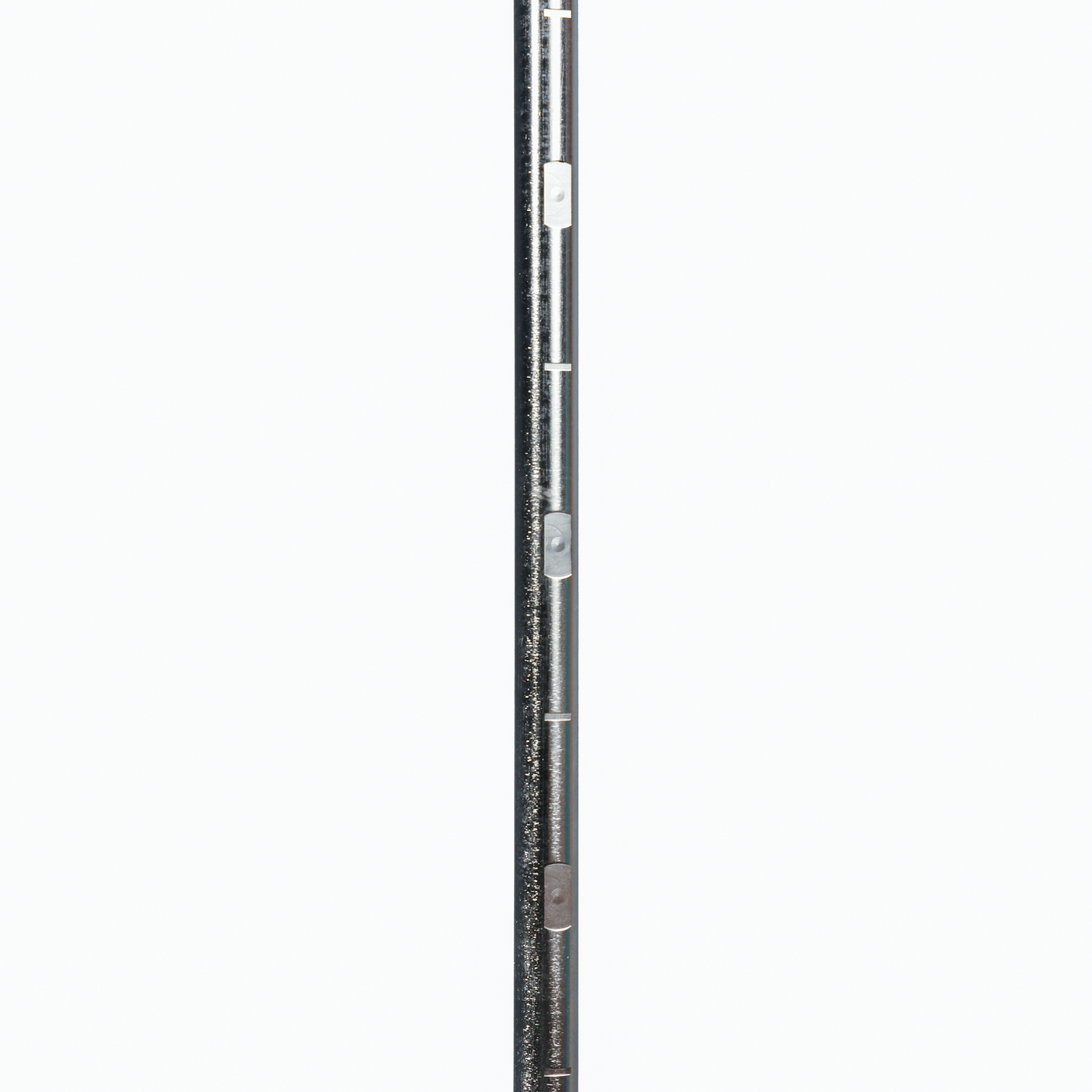

Evenly spaced hash marks and flat spots every 2" for precise positioning and anti-roll security.
2-section system with internal stop that prevents sections from separating or coming apart.

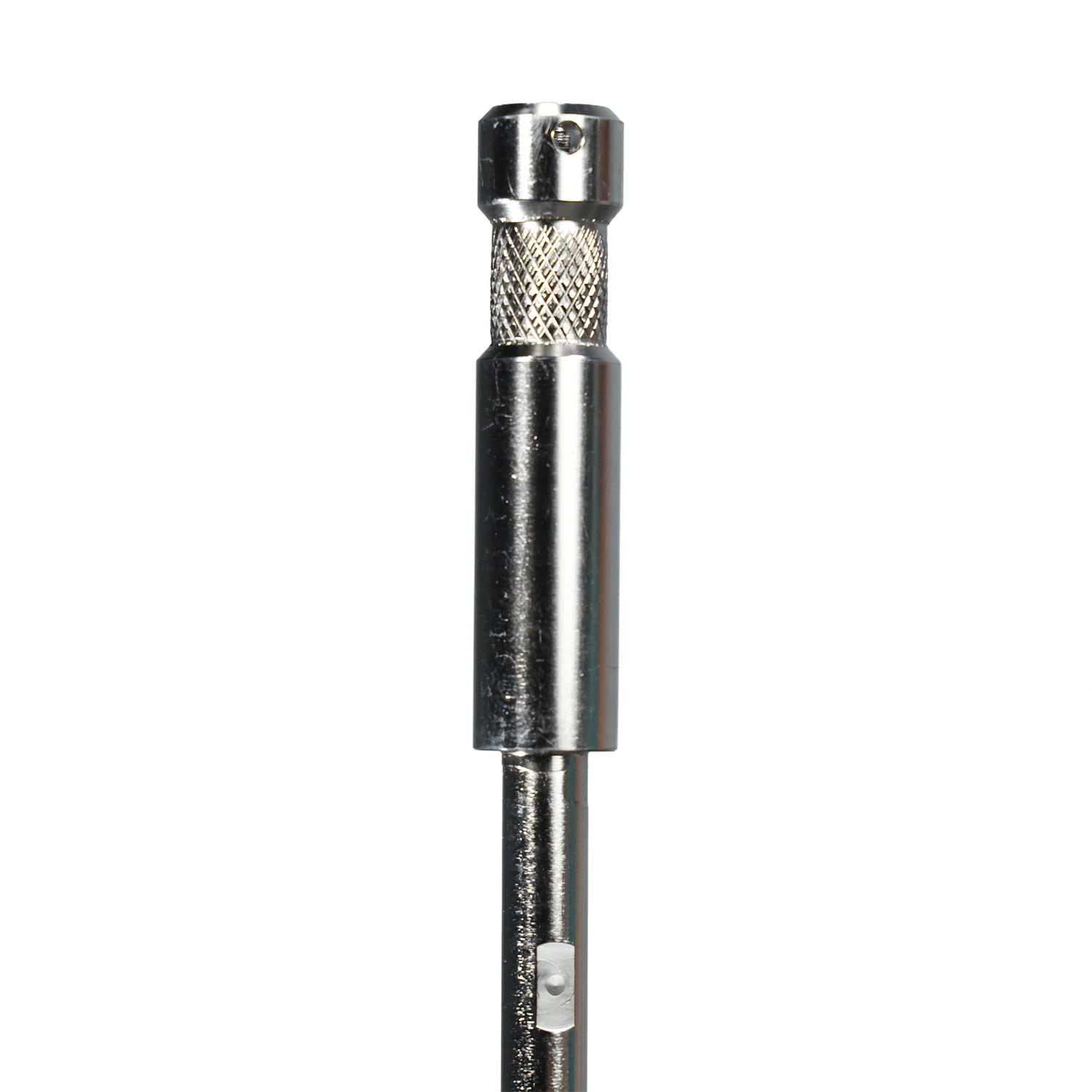

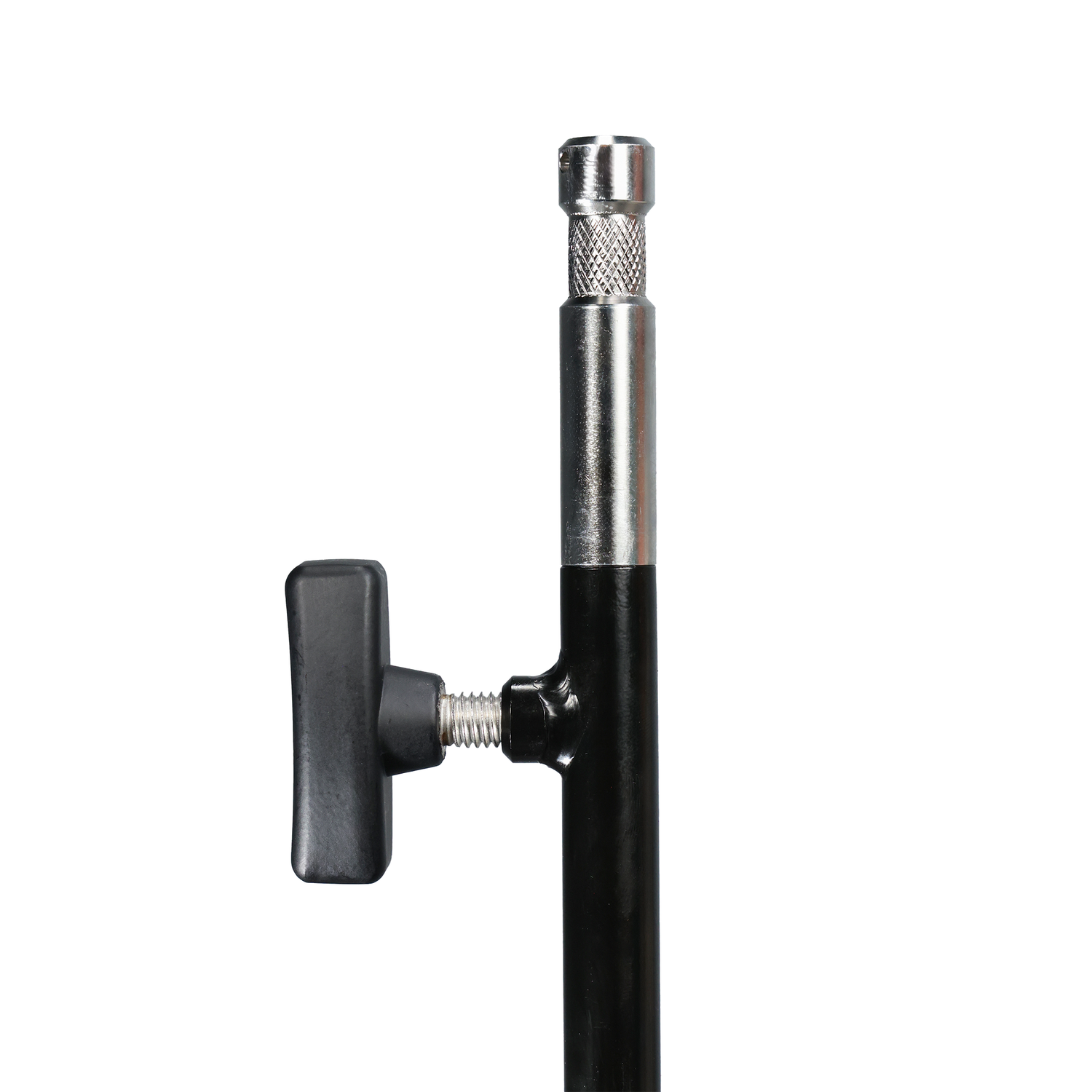

Knurled undercut on baby pin keeps fixtures from immediately slipping if loose.
Safety hole accepts cotter pin or lynch pin for positive retention.
Locking points compatible with included T-handle or field-swappable set screw.

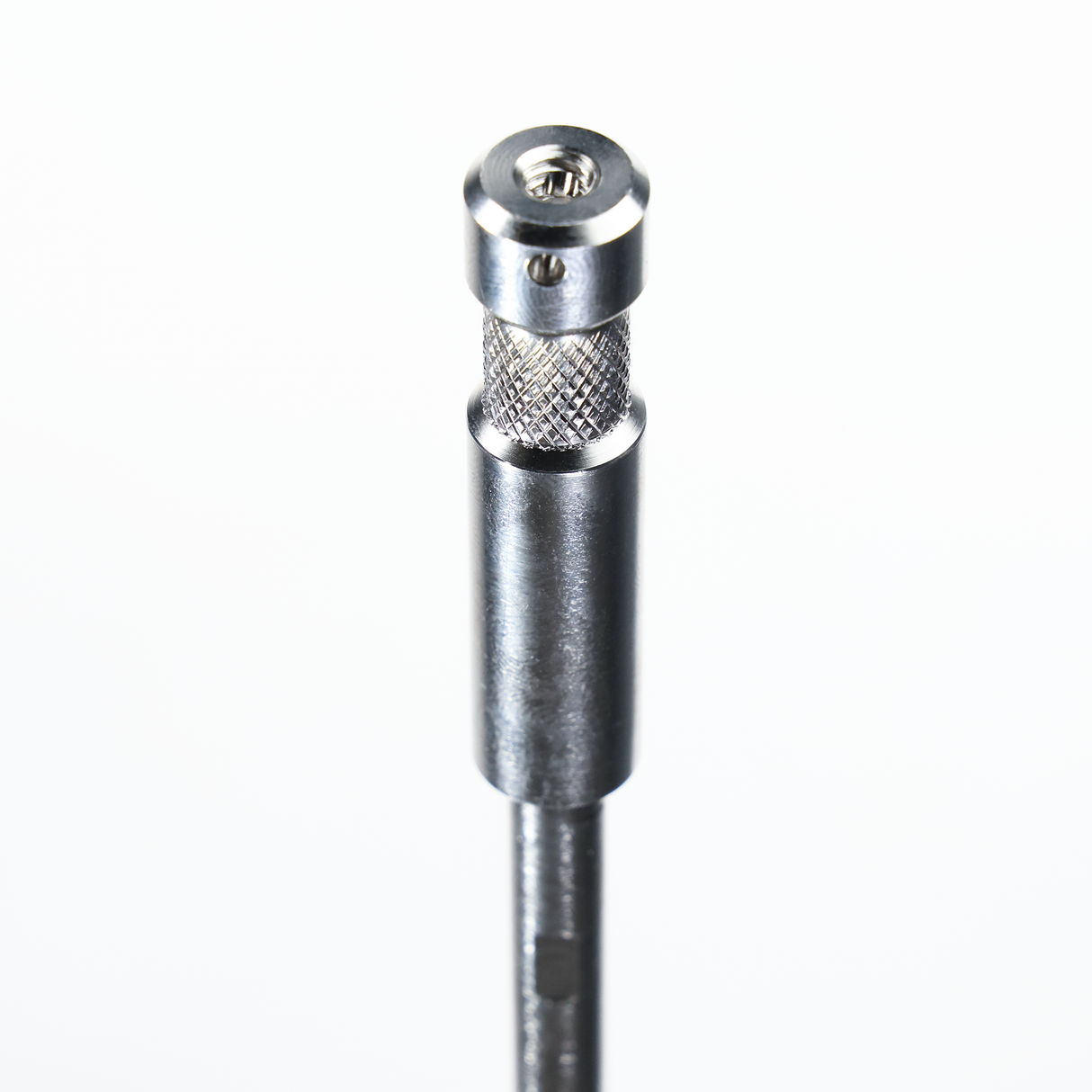

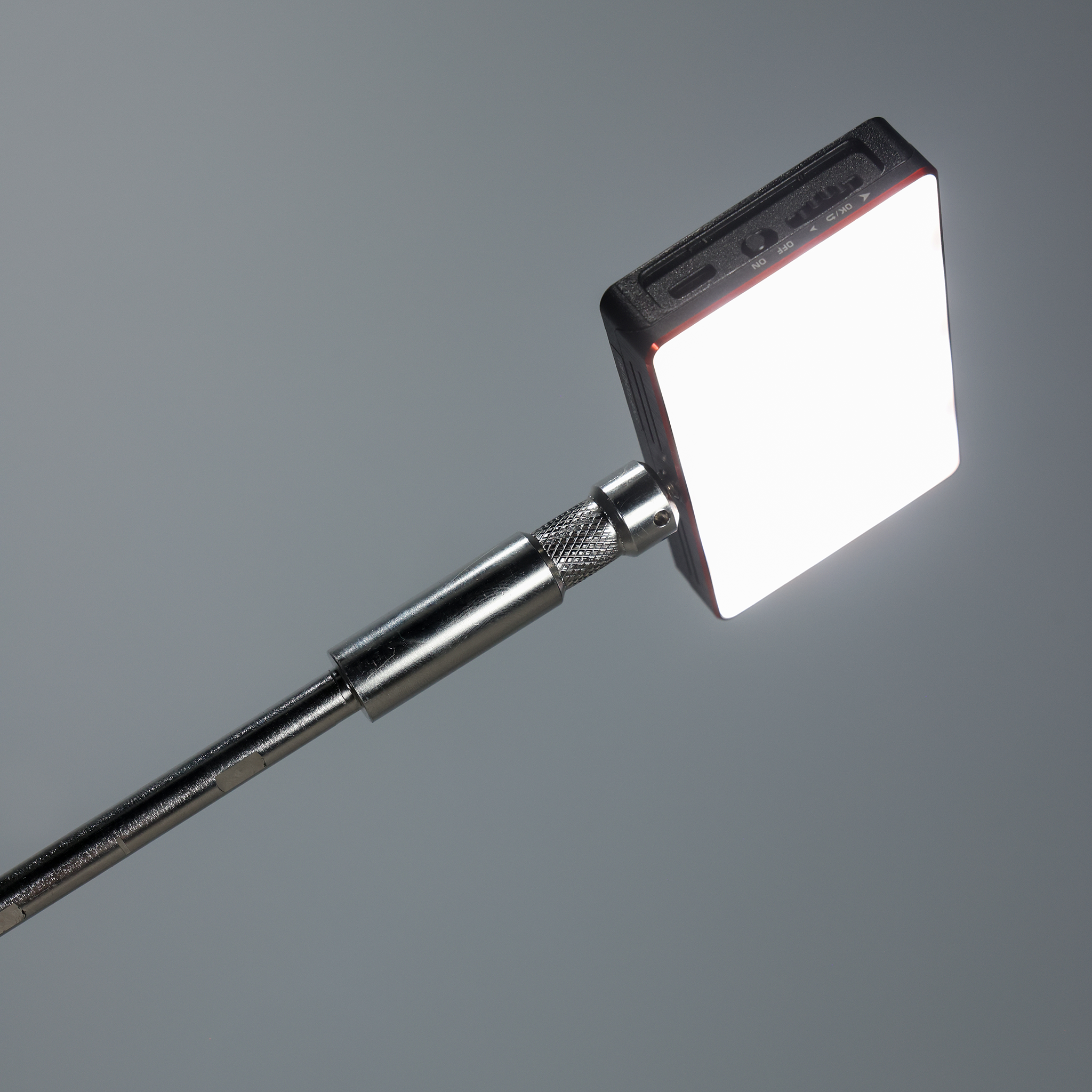

Baby pin tapped female 1/4"–20 industry standard; includes set screw to convert to male 1/4"–20 thread mount.

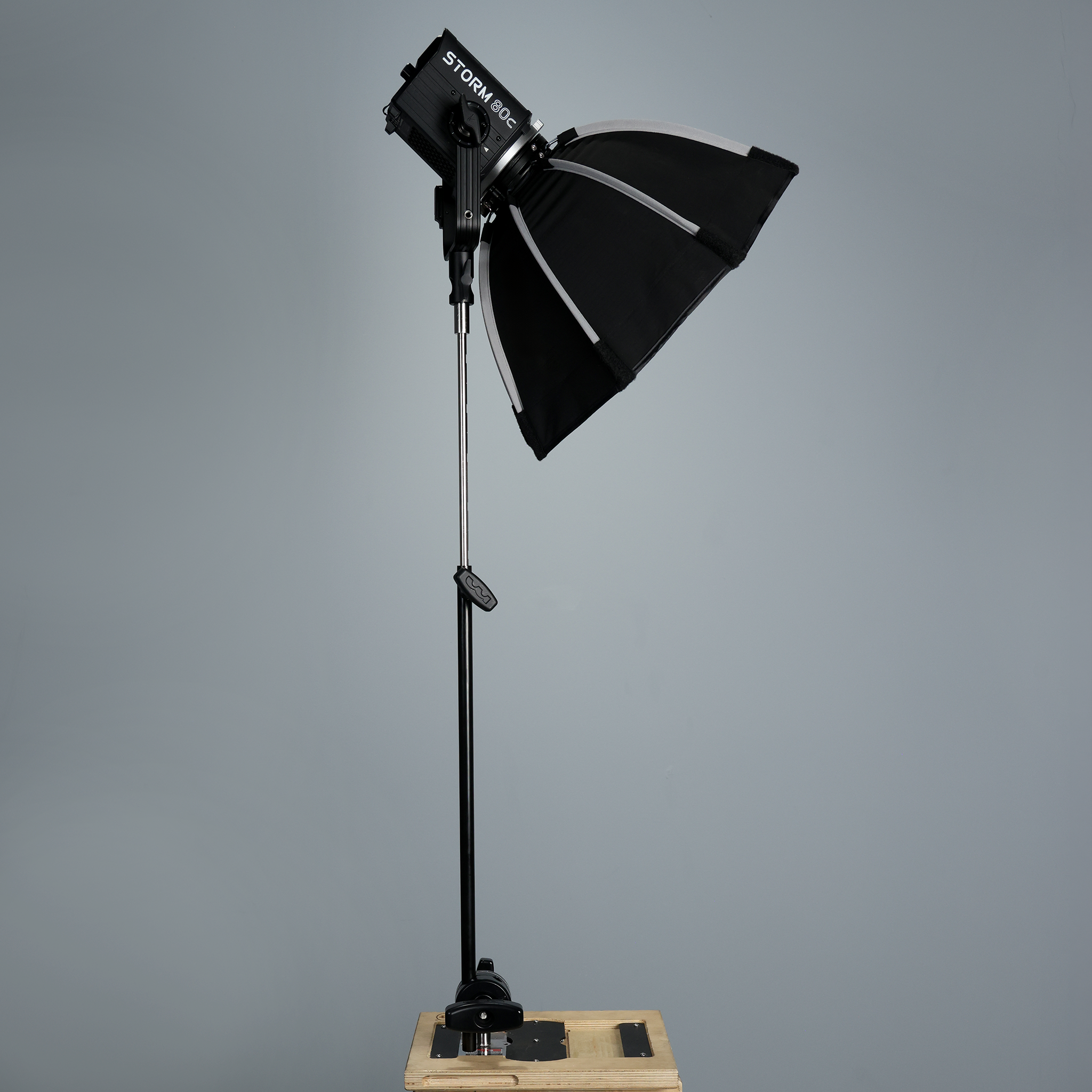

Can be used in both vertical and horizontal positions.

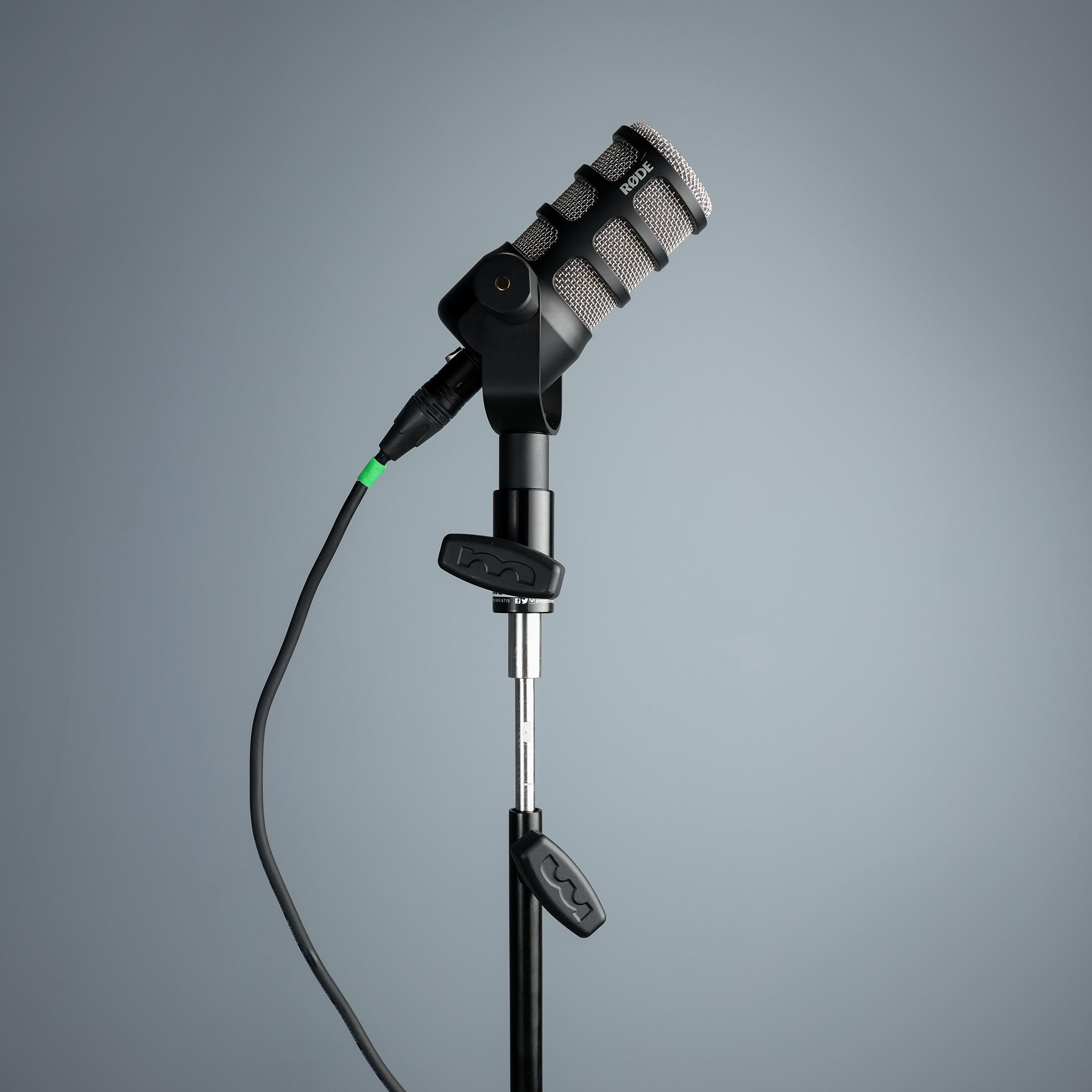

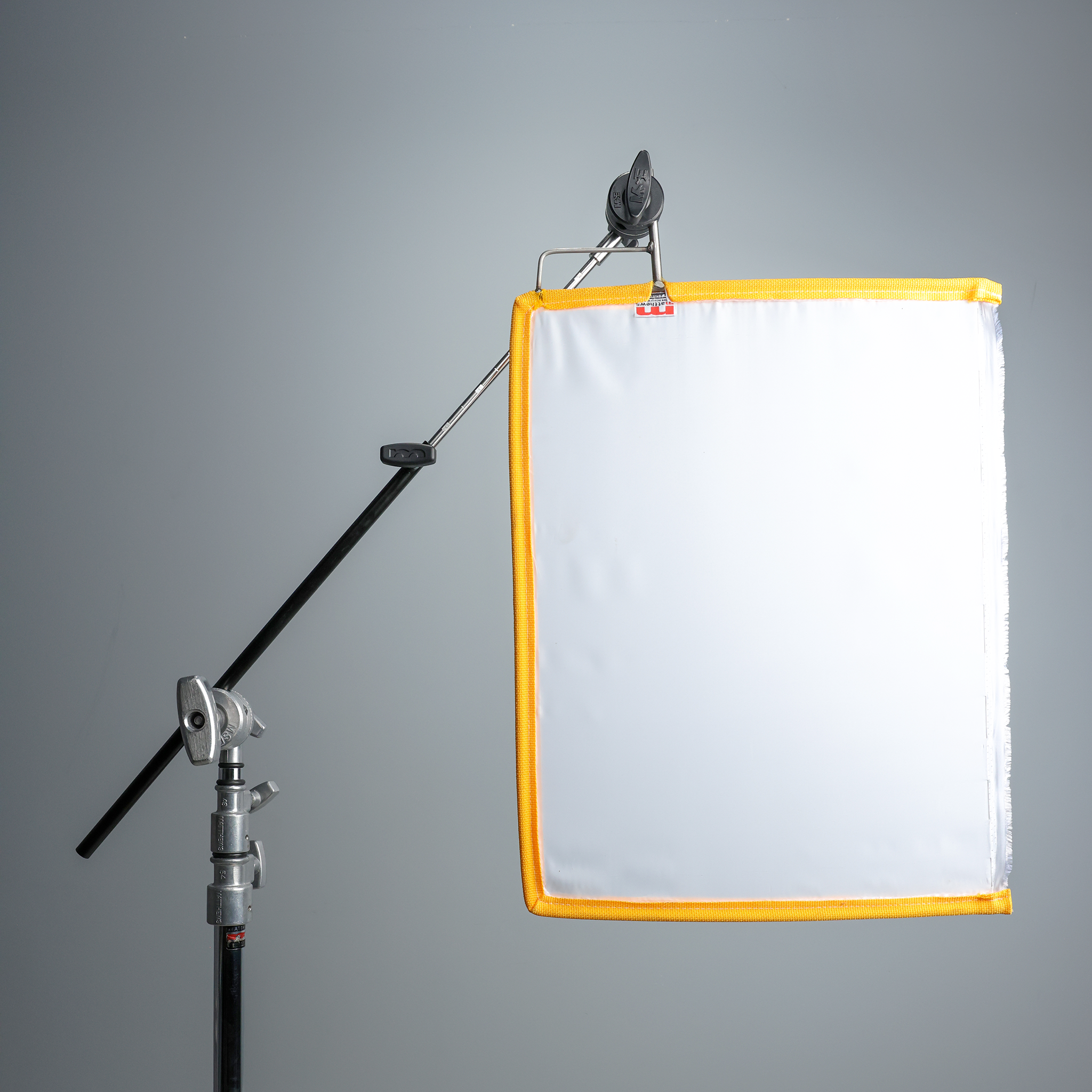

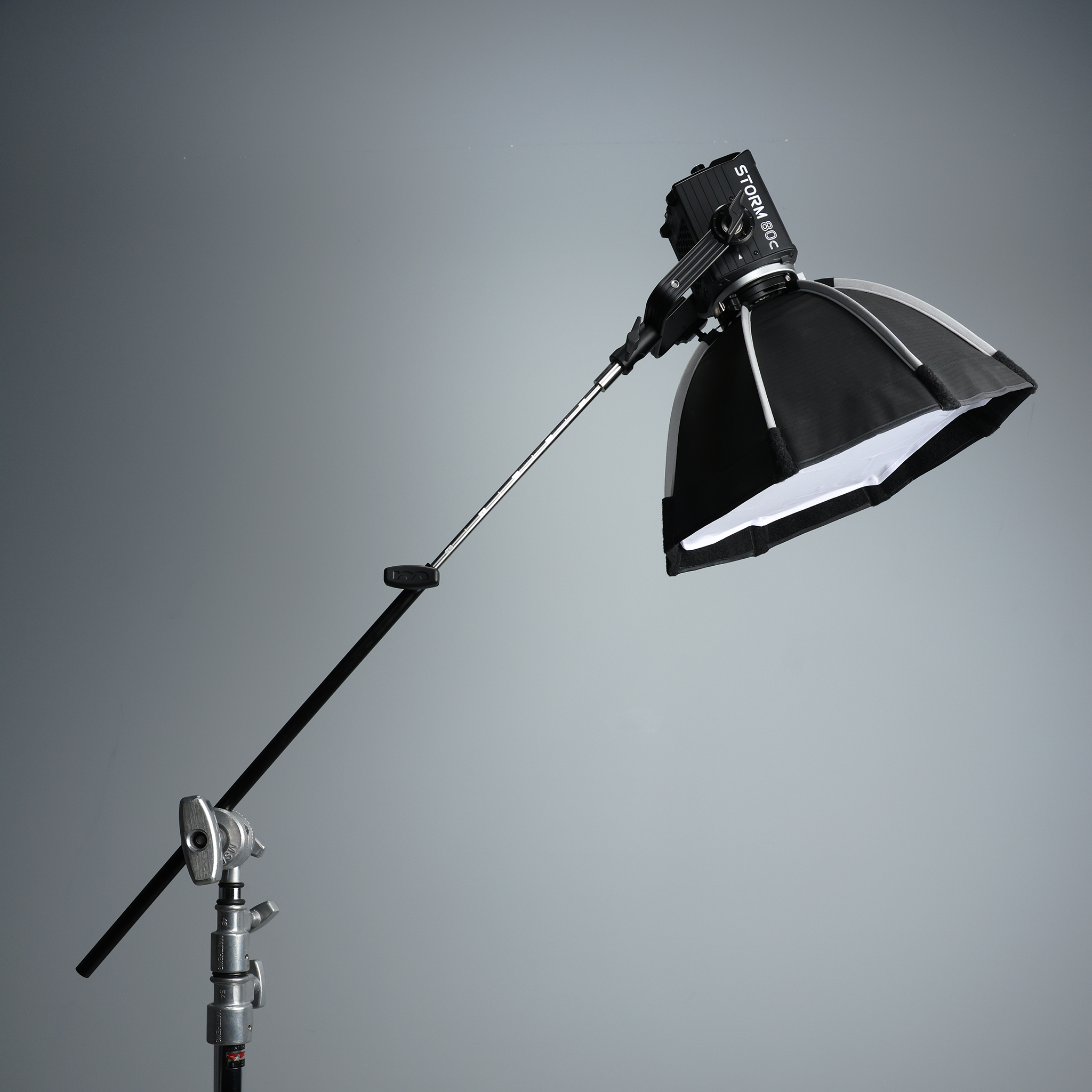

Ideal for live production, cinema, and television

Grips carry multiple lengths of 5/8" rod because a one-size solution doesn't exist - until now. The Matthews 5/8" Grip Rail is a fully telescoping baby pin adjustable rail that closes to 24" and extends to 42.5", covering the range where you used to pack three or more separate rods.

The 5/8" Grip Rail solves a problem that shows up every time you work in a tight space. A standard grip arm forces you to deal with the full arm length — all of it. Whatever doesn't fit behind the light or the rig has to go somewhere, and in a car, a bathroom, or any confined space, that somewhere is a window, a wall, or another piece of equipment. This telescoping baby pin adjustable rail extends only as far as the job requires. Use what you need. The rest stays in.

The solid stainless steel inner rod keeps everything true under load — no flex, no sag, no bow. Alternating hash marks and flat spots every two inches let you dial in your position and lock it down to prevent roll. An internal stop keeps the sections from separating. The steel baby pin includes a knurled undercut so fixtures won't drop if things get loose, a safety hole for a cotter or lynch pin, and a female 1/4"–20 thread that converts to male 1/4"–20 with the included set screw.

Rated 10 lbs horizontally and 20 lbs vertically. Weighs 2 lbs.
